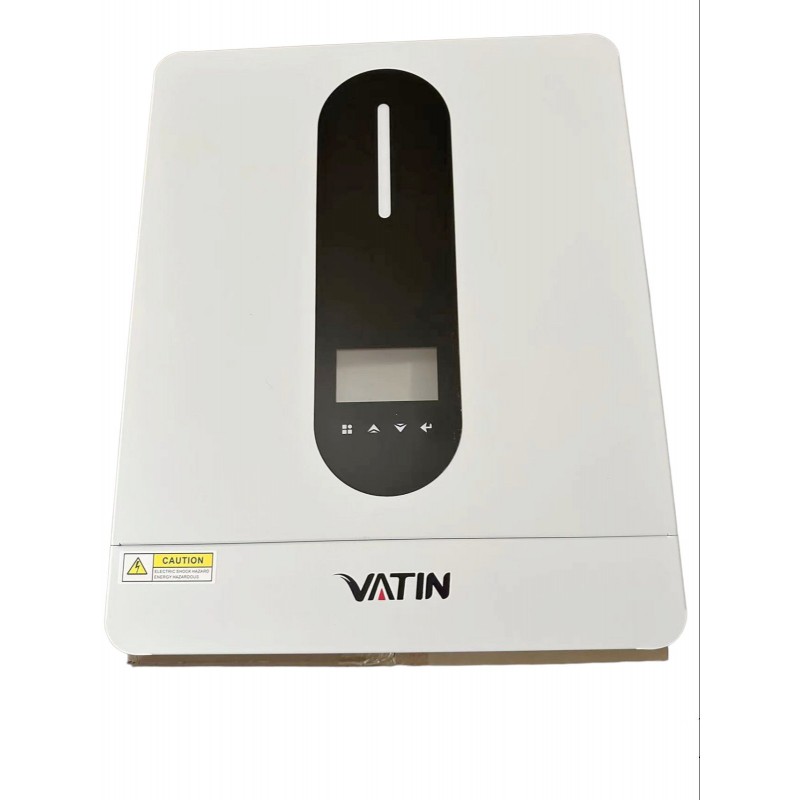

MPPT SOLAR INVERTER ΥΒΡΙΔΙΚΟ SK-2582

        PV INPUT

MONIMAL OPERATING VOLTAGE 240Vdc

VMAX PV 500Vdc

PV INPUT VOLTAGE RANGE 90-500Vdc

IMAX PV 27A

FULL LOAD MPPT RANGE 240-450Vdc

RATED POWER 6500W

MAXIMUM SOLAR CHARGING CURRENT 120A

        GRID/AC OUTPUTNCY

NOMIMAL OUTPUT VOLTAGE 220/230/240Vac

FEED-IN Gnd VOLTAGE RANGE 195-253Vac

FEED-IN Gnd FREQUENCY RANGE 49-51+-1Hz

NOMIMAL OUTPUT CURRENT 27.0A

POWER FACTOR RANGE >0.99

MAXIMUM CONVERSION EFFICIENCY(DC/AC)97%

NOMIMAL OPERATING FREQUENCY 50/60Hz

        TWO LOAD OUTPUT POWER

FULL LOAD 6200W

MAXIMUM SECOND LOAD 2066W

MAIN LOAD CUT OFF VOLTAGE 44Vdc/ RETURN VOLTAGE 52Vdc

        BATTERY

VOLTAGE RANGE 0-63Vdc

MAXIMUM CURRENT 125A
